●Built-in third generation SIC MOSEFET improves efficiency
●Enhance AC/Solar charger to 50A,shorten charging time in one hour
●Parallel operation up to 4 units
●Accept dual AC inputs,utility power and generator powe
●150%unbalanced load support
●Built-in WiFi for mobile monitoring(App is available)
●Wide battery input range
●Built-in communication port for BMS(RS485)
●Self-consumption and feed-back to the grid
●Programmable supply priority for PV,battery or Grid
●Programmable multiple operation modes:Grid-tie,off-grid and grid-tie wit backup
●Built-in timer for various mode of on/off operation
●Lithium Iron Phosphate(LFP)cell
●Scalable Li-lon battery expansion
|

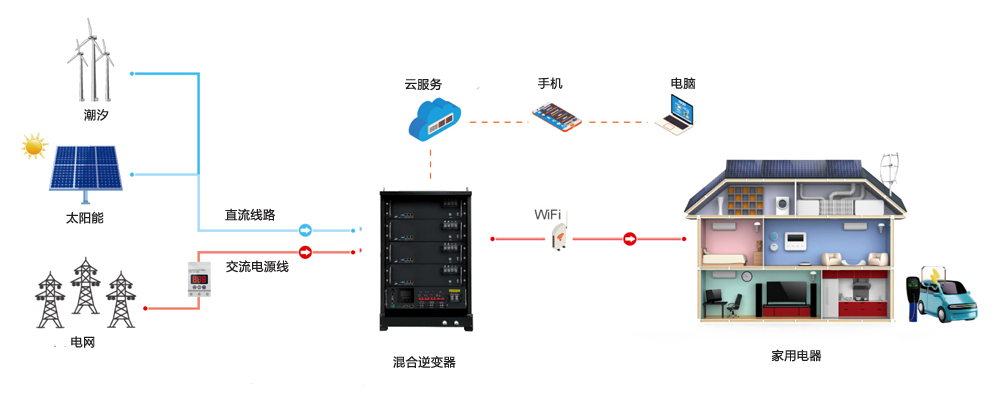

Application Scenario |
|||
 |
|||
|
Model |
IV-5001 |
||
|
Rated power |
5000W |
||
|
Standard voltage |
48VDC |
||
|
Installation |
Cabinet/rack installation |
||
|
PV Parameter |
|||
|
Working model |
MPPT |
||
|
Rated PV input voltage |
360VDC |
||
|
MPPT tracking voltage range |
120-450V |
||
|
Max input voltage (VOC)at lowest temperature |
500V |
||
|
Max input power |
6000W |
||
|
Number of MPPT tracking paths |
1 Path |
||
|
Input |
|||
|
DC input voltage range |
21-30VDC |
42-60VDC |
|
|
Rated mains power input voltage |
220/230/240VAC |
||
|
Grid power input voltage range |
170~280VAC(UPS model)/120~280VAC(inverter model) |
||
|
Grid input frequency range |
40~55HZ(50Hz)55~65HZ(60Hz) |
||
|
Output |
|||
|
Inverter |
Output efficiency |
94% |
|
|
Output voltage |
220VAC±2%/230VAC±2%/240VAC±2%(Inverter model) |
||
|
Output frequency |
50Hz±0.5or 60Hz±0.5(Inverter model) |
||
|
Grid |
Output efficiency |
≥99% |
|
|
Output voltage range |
Following input |
||
|
Output frequency range |
Following input |
||
|
Battery mode no-load loss |
≤1%(Atrated power) |
||
|
Grid mode no-load loss |
≤0.5% Rated power(the charger of grid power doesn't work) |
||
|
Battery |
|||
|
Battery type |
Lead acid battey |
Equalizing charging 13.8V Floating charging 13.7V(single battery voltage) |
|
|
Customized battery |
The parameter canbe set according to customers'requirement(Use different types of battery by setting the panel) |
||
|
Max mains charging current |
60A |
||
|
Max PV charging current |
100A |
||
|
Max charging current(Grid+PV) |
100A |
||
|
Charging method |
Three-stage (constant current,constant voltage,float charge) |
||
|
Protected Mode |
|||
|
Battery low voltage range |
Battery low voltage protection value +0.5V (Single battery voltage) |
||
|
Battery voltage protection |
Factory default: 10.5V (Single battery voltage) |
||
|
Battery over voltage alarm |
Equal charging voltage +0.8V (Single battery voltage) |
||
|
Battery over voltage protection |
Factory default: 17V (Single battery voltage) |
||
|
Battery over voltage recovery Voltage |
Battery over voltage protection value-1V(Single battery voltage) |
||
|
Overload/short circuit protection |
Automatic protection (battery mode),circuit breaker or fuse (Grid mode) |
||
|
Temperature protection |
≥90C off output |
||
|
Performance Parameters |
|||
|
Conversion time |
≤4ms |
||
|
Cooling method |
Intelligent cooling fan |
||
|
Working temperature |
-10~40℃ |
||
|
Storage temperature |
-15~60℃ |
||
|
Altitude |
2000m(>2000m altitude need derating) |
||
|
Humidity |
0~95%(No condensation) |
||
|
Product Size |
440*484*178mm |
||
|
Package Size |
555*500*235mm |
||
|
Net weight |
9.5kg |
||
|
Gross weight |
10.5kg |
||
