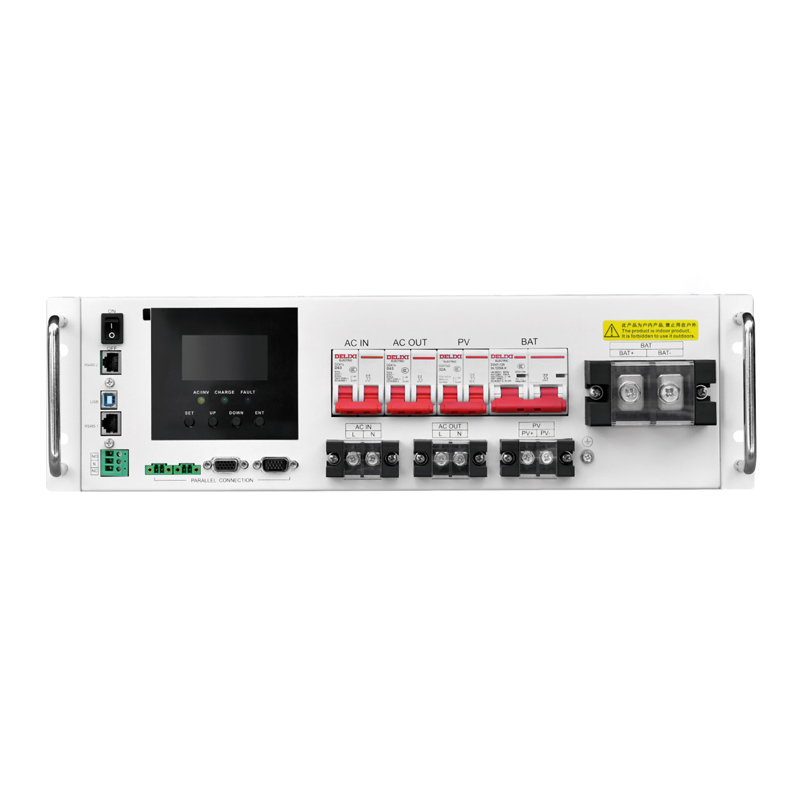

IV-5001

IV-5001

●Built-in third generation SIC MOSEFET improves efficiency

●Enhance AC/Solar charger to 50A,shorten charging time in one hour

●Parallel operation up to 4 units

●Accept dual AC inputs,utility power and generator powe

●150%unbalanced load support

●Built-in WiFi for mobile monitoring(App is available)

●Wide battery input range

●Built-in communication port for BMS(RS485)

●Self-consumption and feed-back to the grid

●Programmable supply priority for PV,battery or Grid

●Programmable multiple operation modes:Grid-tie,off-grid and grid-tie wit backup

●Built-in timer for various mode of on/off operation

●Lithium Iron Phosphate(LFP)cell

●Scalable Li-lon battery expansion

Specification:

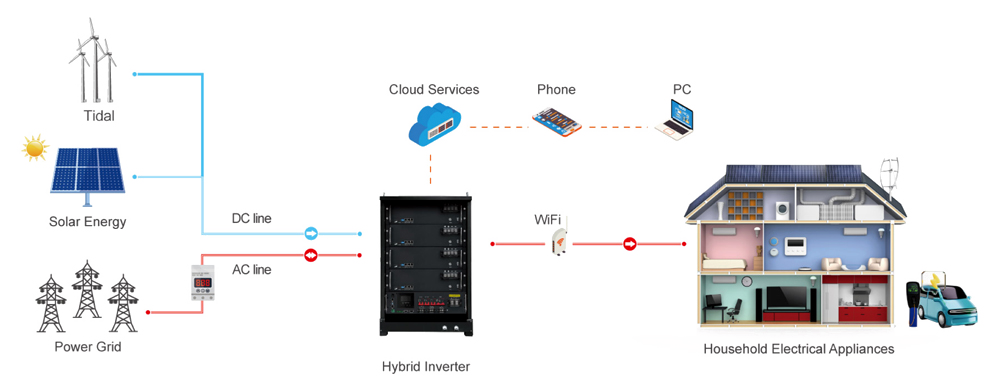

Application Scenario

Model
IV-5001
Rated power
5000W
Standard voltage
48VDC
Installation
Cabinet/rack installation
PV Parameter
Working model
MPPT
Rated PV input voltage
360VDC
MPPT tracking voltage range
120-450V
Max input voltage (VOC)at lowest temperature
500V
Max input power
6000W
Number of MPPT tracking paths
1 Path
Input
DC input voltage range
21-30VDC
42-60VDC
Rated mains power input voltage
220/230/240VAC
Grid power input voltage range
170~280VAC(UPS model)/120~280VAC(inverter model)
Grid input frequency range
40~55HZ(50Hz)55~65HZ(60Hz)
Output
Inverter
Output efficiency
94%
Output voltage
220VAC±2%/230VAC±2%/240VAC±2%(Inverter model)
Output frequency
50Hz±0.5or 60Hz±0.5(Inverter model)
Grid
Output efficiency
99%
Output voltage range
Following input
Output frequency range
Following input
Battery mode no-load loss
≤1%(Atrated power)
Grid mode no-load loss
≤0.5% Rated power(the charger of grid power doesn't work)
Battery
Battery type
Lead acid battey
Equalizing charging 13.8V Floating charging 13.7V(single battery voltage)
Customized battery
The parameter canbe set according to customers'requirement(Use different types of battery by setting the panel)
Max mains charging current
60A
Max PV charging current
100A
Max charging current(Grid+PV)
100A
Charging method
Three-stage (constant current,constant voltage,float charge)
Protected Mode
Battery low voltage range
Battery low voltage protection value +0.5V (Single battery voltage)
Battery voltage protection
Factory default: 10.5V (Single battery voltage)
Battery over voltage alarm
Equal charging voltage +0.8V (Single battery voltage)
Battery over voltage protection
Factory default: 17V (Single battery voltage)
Battery over voltage recovery Voltage
Battery over voltage protection value-1V(Single battery voltage)
Overload/short circuit protection
Automatic protection (battery mode),circuit breaker or fuse (Grid mode)
Temperature protection
≥90C off output
Performance Parameters
Conversion time
≤4ms
Cooling method
Intelligent cooling fan
Working temperature
-10~40℃
Storage temperature
-15~60℃
Altitude
2000m(>2000m altitude need derating)
Humidity
0~95%(No condensation)
Product Size
440*484*178mm
Package Size
510*554*248mm
Net weight
10.5kg
Gross weight
12.5kg
Qty/20ft
400pcs
Qty/40hg
970pcs
