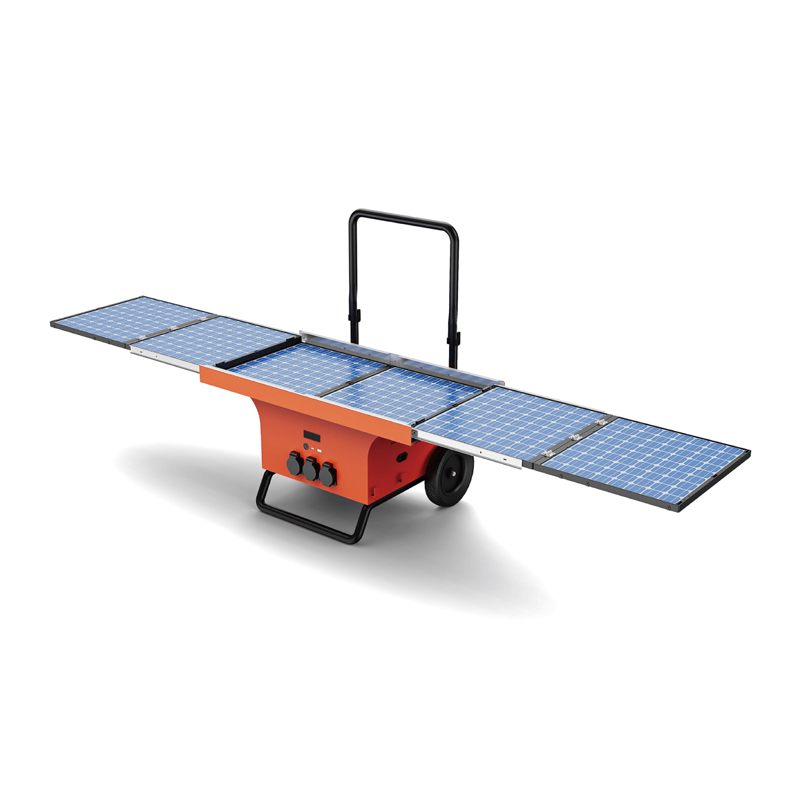

Model
|
EC1200S
|
Inverter Type
|
Bidirectional Inverter
|
Output
|
Ac Output X3
|
Rated Voltage
|
100-120vac/220-240Vac
|
|
Rated Power
|
1200w
|
|
Peak Power
|
1500w
|
|
Frequency
|
50/60HZ
|
Usb Output
|
12W
|
Type-c Output
|
PD/QC3.0 MAX 30W 12V/2.5A
|
Input
|
Ac Input
|
100-120vac/220-240Vac 10A
|
Solar Panel
|
36V.200w max
|
Battery
|
Rated Capacity
|
1260WH
|
Rated Voltage
|
25.6V
|
Battery Cell Type
|
Lithium iron phosphate cylindrical type IFR 32140
|
OperatingTemperature
|
0-40℃
|
Charging
|
0℃-60℃
|
Discharging
|
-30℃-60℃
|
Protection Function
|
Short circuit,overload,over temperature,over voltage, over current,under voltage etc,automatic release
|
Energy Consumption
|
<2W(Work mode),<50mw(Sleep mode)
|
Monitoring Paramenters
|
system voltage,cell voltage and temperature,Current,PCBA temperature
|
Certifications
|
System
|
CE,UN38.3,MSDS
|
Battery
|
UL1642,IEC62619,IEC62620
|
General
|
Water Proof
|
IP21
|
Package
|
Wooden Case+Pearl Wool
|
Products Unfold Size
|
2200*489*809mm
|
Products Foldable Size
|
773*489*499mm
|
Package size
|
850*560*580mm
|
Net Weight
|
31kgs
|
Gross Weight
|
34kgs
|
Qty/20ft 20
|
101pcs
|
Qty/40hq 40
|
246pcs
|
Accessory
|
AC charge cable*1,Car charging wire*1,solar charging cable*1,Solar panel,A foldable tolley
|
