E2400

E2400


Specification:

Model
E2400
Inverter Type
Bidirectional Inverter
Output
AC Output X3
Rated Voltage
100-120vac/220-240Vac

Rated Power
2400W

Peak Power
4800W

Frequency
50/60HZ
USB Output
MAX 22.5W
USB Output
12W
Type-c Output
PD 100W
Type-c Output
PD 30W
Led Light
7W Two Working Mode
DC Output 1
48V/50A
DC Output 2
12V/10A
Sdc5521 Output
12V/3A X2
Input
AC Input
100-120vac/220-240Vac 7A
Solar Panel
15V-100V 25A
Battery
Rated Capacity
2160WH
Rated Voltage
48V
Battery Cell Type
Lithium iron phosphate cylindrical type IFR 32140
Operating Temperature
0-40℃
Battery Cycle Life
3000times
Protection Function
Short circuit,overload,over temperature,over voltage,over current,under voltage etc,automatic release
Monitoring Paramenters
system voltage,cell voltage and temperature,Current,PCBA temperature
Certifications
CE,ROHS,UN38.3,MSDS,UL1642,IEC62619,IEC62133
General
Package
Carton+Pearl wool+Carrying bag

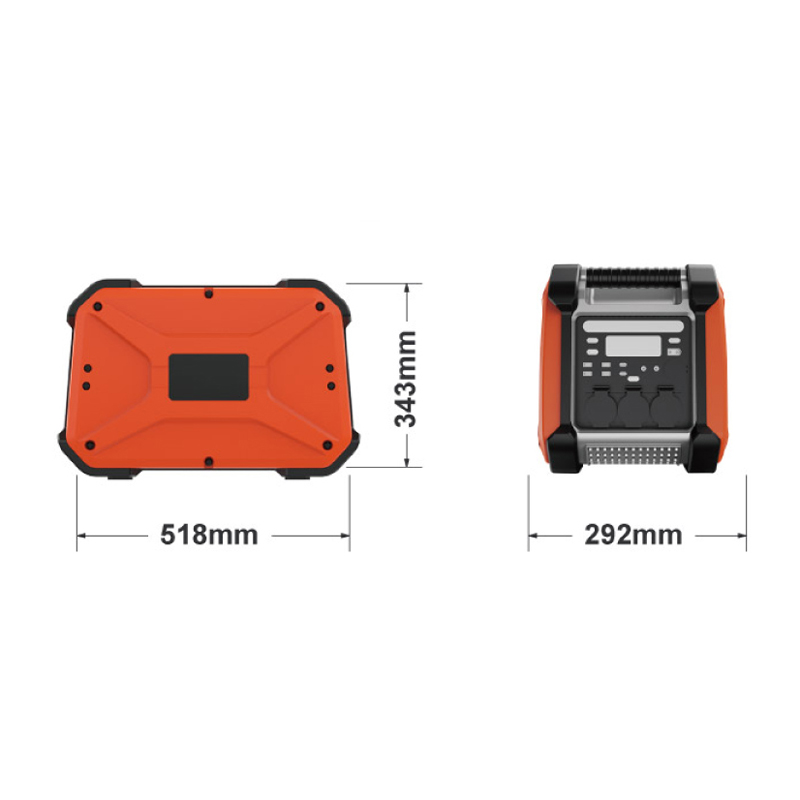

Products Size
518*292*343mm
Package Size
580*350*410mm
Net Weight
24kgs
Gross Weight
26kgs
Qty/20ft
342pcs
Qty/40hq
829pcs
Accessory
AC charger cable*1,Instruction manual*1
Optional Accessories
Solar panel*1,Car charging cable*1,Solar charging cable *1,DC5521 patch cord *1
