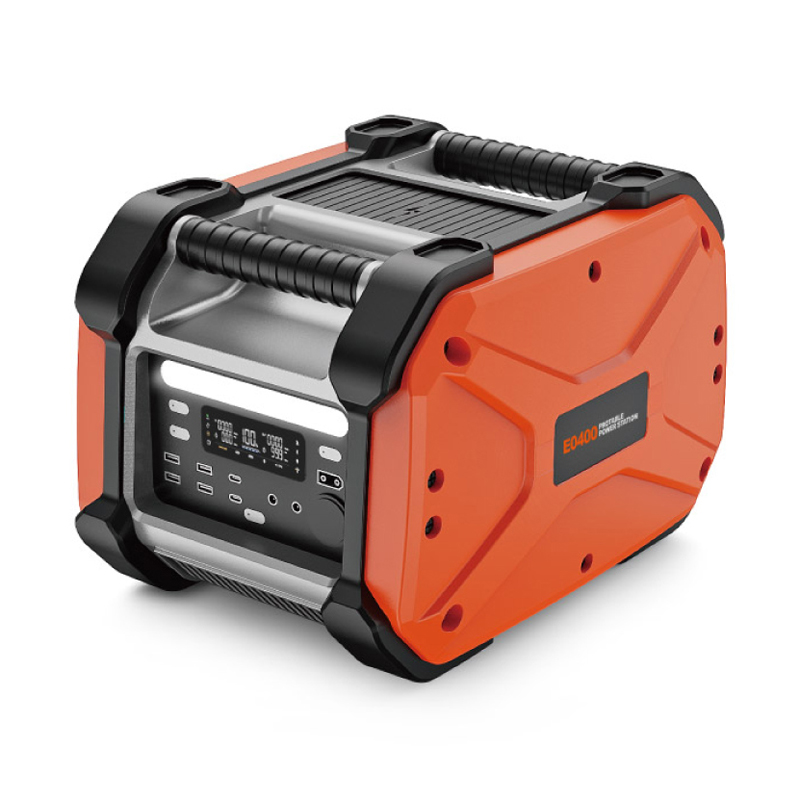

Model
|
E0400
|
Inverter Type
|
Bidirectional inverter
|
Output
|
Ac Output X3
|
Rated Voltage
|
100-120vac/220-240Vac
|
|
Rated Power
|
400W
|
|
Peak Power
|
470W
|
|
Frequency
|
50/60HZ
|
Usb Output
|
QC3.0 MAX 18W 12V/1.5A, SCP maximum output power: 22.5W maximum
|
Usb Output
|
12W
|
Type-c Output
|
PD100W
|
Type-c Output
|
PD/QC3.0 MAX 30W 12V/2.5A
|
Led Light
|
7W Two Working Mode
|
Dc Output
|
Continuous working current 45A, instantaneous maximum current 90A, 3-5 seconds
|
Sdc5521 Output
|
2X38W
|
Input
|
Ac Input
|
100-120vac/220-240Vac 10A
|
Solar Panel
|
36V,200w max
|
Battery
|
Rated Capacity
|
378WH
|
Rated Voltage
|
19.2V
|
Battery Cell Type
|
Lithium iron phosphate cylindrical type IFR 32700
|
Operating Temperature
|
0-40℃
|
Charging
|
0℃—60℃
|
Discharging
|
-30℃—60℃
|
Protection Function
|
Short circuit, overload, over temperature, over voltage, over current, under voltage etc,automatic release
|
Energy Consumption
|
<2W(Work mode),<50mw(Sleep mode)
|
Monitoring Paramenters
|
system voltage, cell voltage and temperature,Current,PCBA temperature
|
Certifications
|
System
|
CE, UN38.3, MSDS
|
Battery
|
UL1642,IEC62619,IEC62620,UN38.3
|
General
|
Water Proof
|
IP21
|
Package
|
Carton+Pearl wool+Carrying bag
|

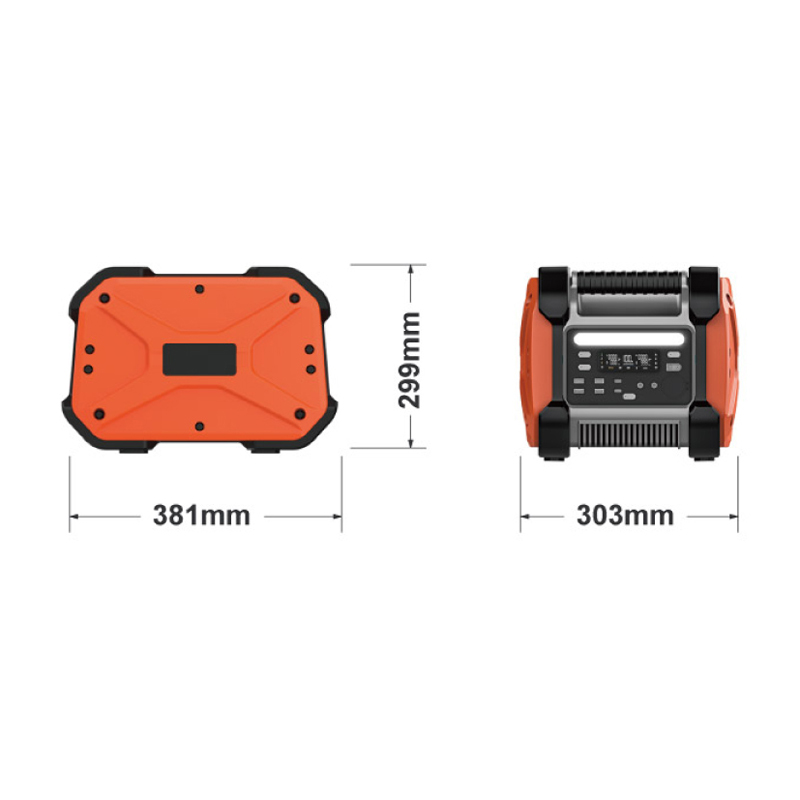

Products Size
|
382*320*300mm
|
Package Size
|
462*400*380mm
|
Net Weight
|
12kgs
|
Gross Weight
|
14kgs
|
Qty/20ft 20
|
398pcs
|
Qty/40hq 40
|
968pcs
|
Accessory
|
AC charger* 1,Car charging wire*1,Solar charging cable *1
|
Optional Accessories
|
Solar panel, A foldable trolley, Car fast charge cable
|
