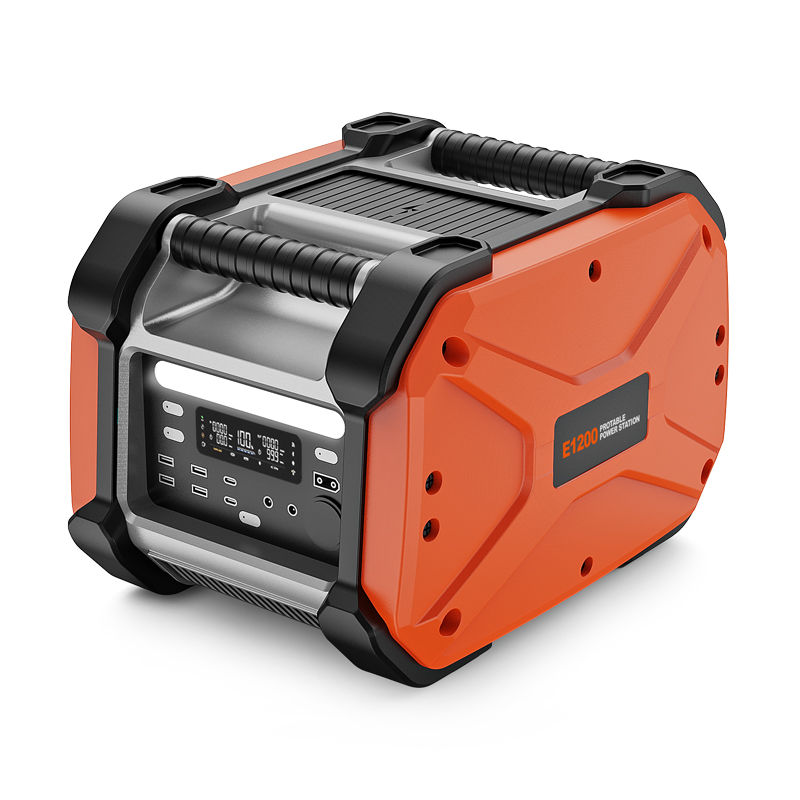

Model
|
E1200
|
Inverter Type
|
Bidirectional Inverter
|
Output
|
AC Output X3
|
Rated Voltage
|
100-120vac/220-240Vac
|
|
Rated Power
|
1200W
|
|
Peak Power
|
2000W
|
|
Frequency
|
50/60HZ
|
USB Output
|
MAX 22.5W
|
USB Output
|
12W
|
Type-c Output
|
PD 100W
|
Type-c Output
|
PD 30W
|
Led Light
|
7W Two Working Mode
|
DC Output 1
|
24V/45A
|
DC Output 2
|
12V/10A
|
Sdc5521 Output
|
12V/3A X2
|
Input
|
AC Input
|
100-120vac/220-240Vac 2.4A
|
Solar Panel
|
12V-30V 88W
|
Battery
|
Rated Capacity
|
1152WH
|
Rated Voltage
|
25.6V
|
Battery Cell Type
|
Lithium iron phosphate cylindrical type IFR 32140
|
Operating Temperature
|
0-40℃
|
Battery Cycle Life
|
3000times
|
Protection Function
|
Short circuit,overload,over temperature,over voltage,over current,under voltage etc,automatic release
|
Monitoring Paramenters
|
system voltage,cell voltage and temperature,Current,PCBA temperature
|
Certifications
|
CE,ROHS,UN38.3,MSDS,UL1642,IEC62619,IEC62133
|
General
|
Package
|
Carton+Pearl wool+Carrying bag
|

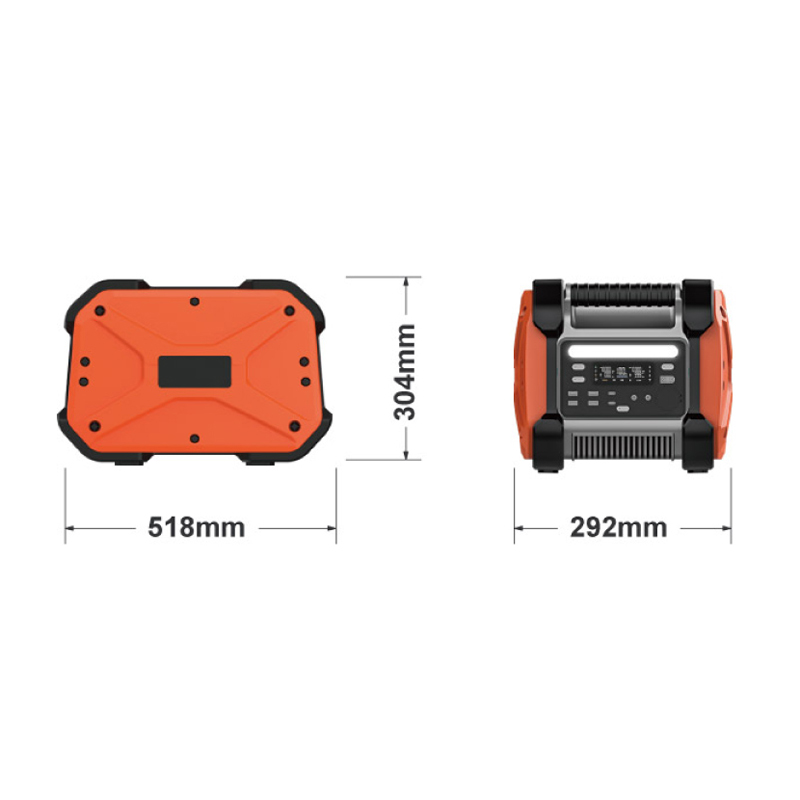

Products Size
|
518*292*304mm
|
Package Size
|
580*350*370mm
|
Net Weight
|
16kgs
|
Gross Weight
|
18kgs
|
Qty/20ft
|
378pcs
|
Qty/40hq
|
918pcs
|
Accessory
|
AC charger cable*1,Instruction manual*1
|
Optional Accessories
|
Solar panel*1,Car charging cable*1,Solar charging cable *1,DC5521 patch cord *1
|
