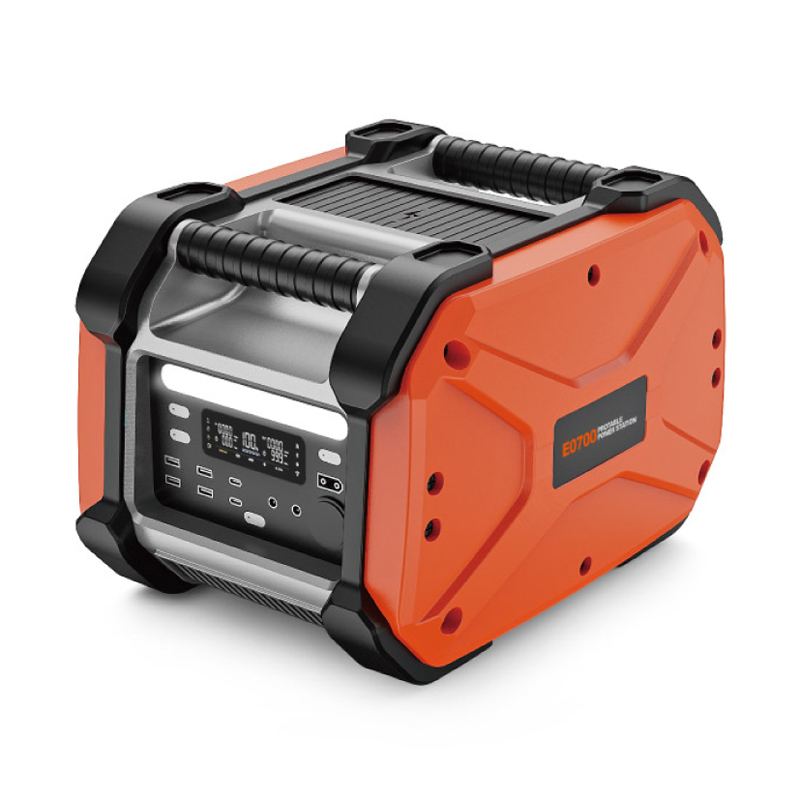

Model
|
E0700
|
Inverter Type
|
Bidirectional Inverter
|
Output
|
AC Output X2
|
Rated Voltage
|
100-120VAC/220-240VAC
|
|
Rated Power
|
700W
|
|
Peak Power
|
1400W
|
|
Frequency
|
50/60HZ
|
USB Output 1,2
|
22.5W Max
|
USB Output 3,4
|
12W
|
Type-C Output 1
|
PD 100W
|
Type-C Output 2
|
PD 30W
|
Led Light
|
7W Two Working Mode
|
DC Output 1
|
24V/45A
|
DC Output 2
|
12V/3A
|
Input
|
AC Input
|
100-120VAC/220-240VAC 0.4A
|
Solar Panel
|
12V-30V 85W
|
Battery
|
Rated Capacity
|
614WH
|
Rated Voltage
|
25.6V
|
Battery Cell Type
|
Lithium iron phosphate cylindrical type IFR 32700
|
Operating Temperature
|
0-40℃
|
Battery Cycle Life
|
3000times
|
Protection Function
|
Short circuit, overload, over temperature, over voltage, over current, under voltage etc,automatic release
|
Monitoring Paramenters
|
system voltage,cell voltage and temperature,Current,PCBA temperature
|
Certifications
|
CE,ROHS,UN38.3,MSDS,UL1642,IEC62619,IEC62133
|
General
|

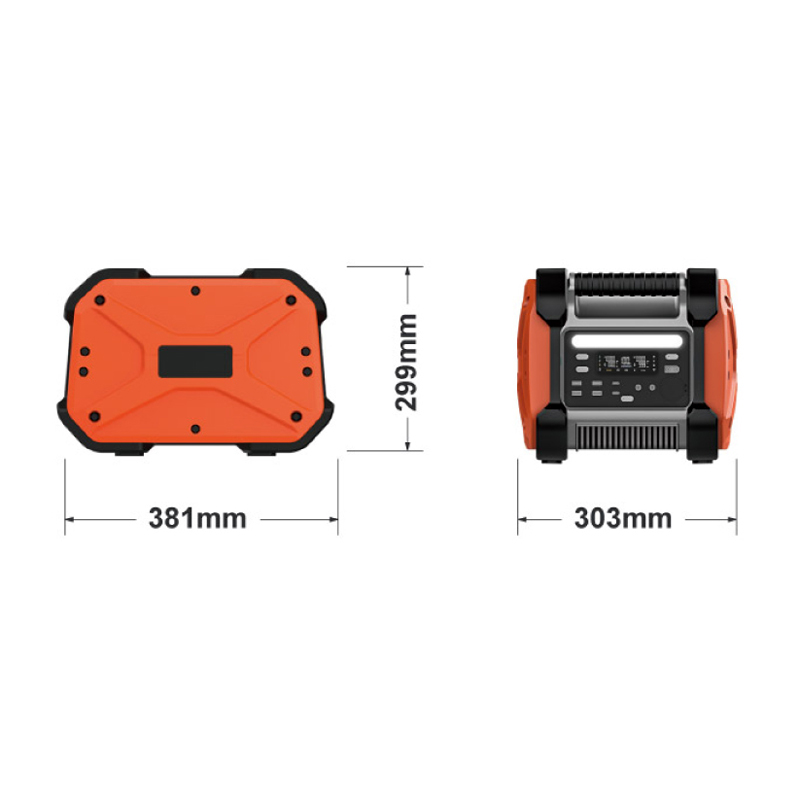

Products Size
|
381*303*299mm
|
Package Size
|
440*365*360mm
|
Net Weight
|
12kgs
|
Gross Weight
|
14kgs
|
Qty/20ft
|
487pcs
|
Qty/40hq
|
1183pcs
|
Accessory
|
AC charger cable *1,Instruction manual*1
|
Optional Accessories
|
Solar panel*1,Car charging cable*1,Solar charging cable *1,DC5521-5525patch cord *1
|
Car Fridge(60w)
|
9hrs
|
Macbook Pro 16'
|
4.5 Charges
|
Drone(90w)
|
6 Charges
|
CPAP(40w)
|
13-42hrs
|
Camera(5w)
|
113 Charges
|
TV(60w)
|
8.2hrs
|
Switch(39w)
|
13 Charges
|
Blender(300w)
|
1.7hrs
|
