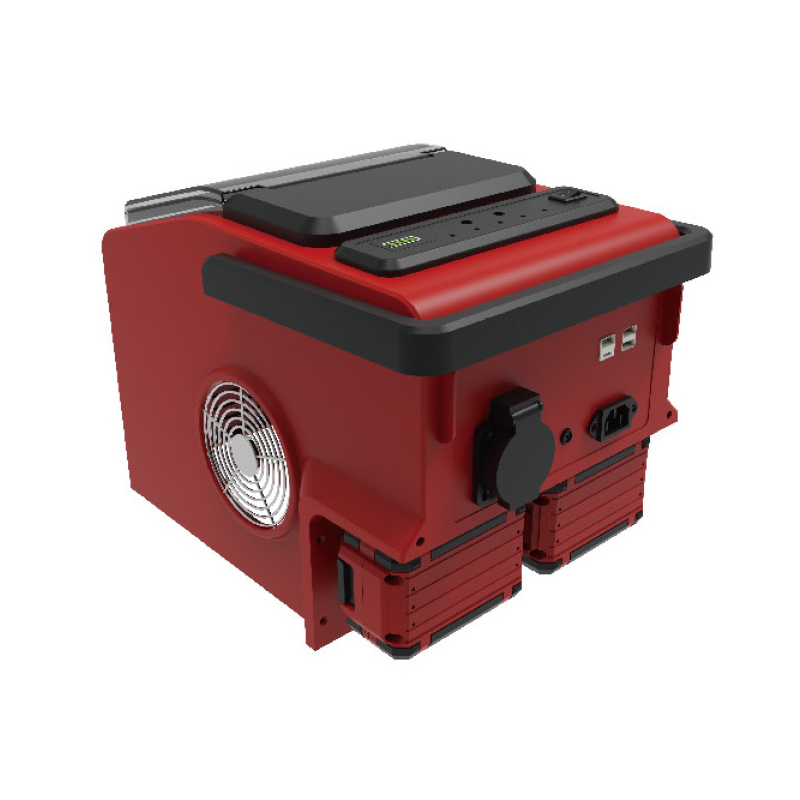

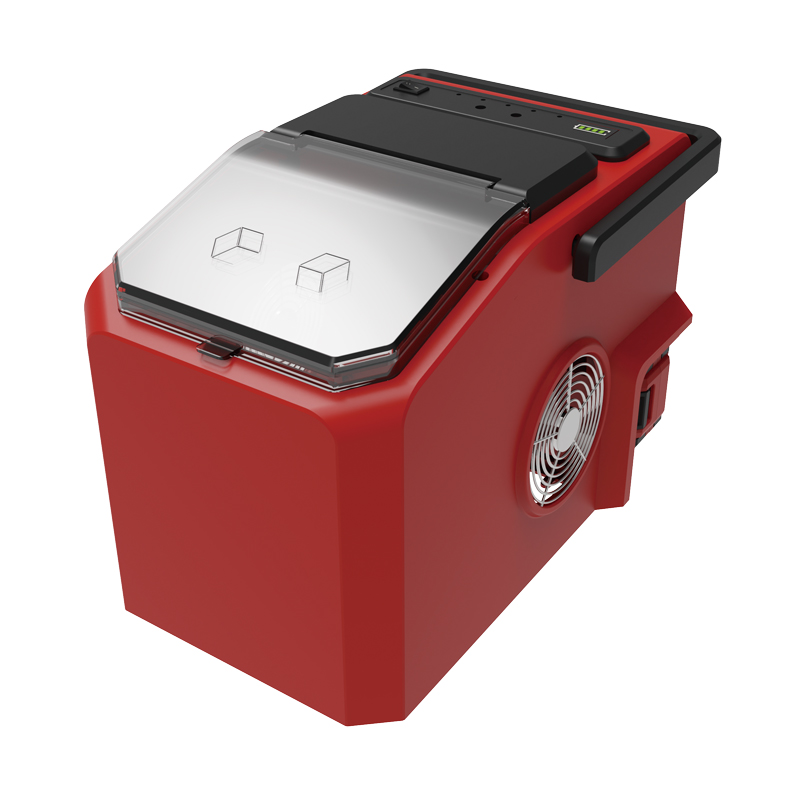

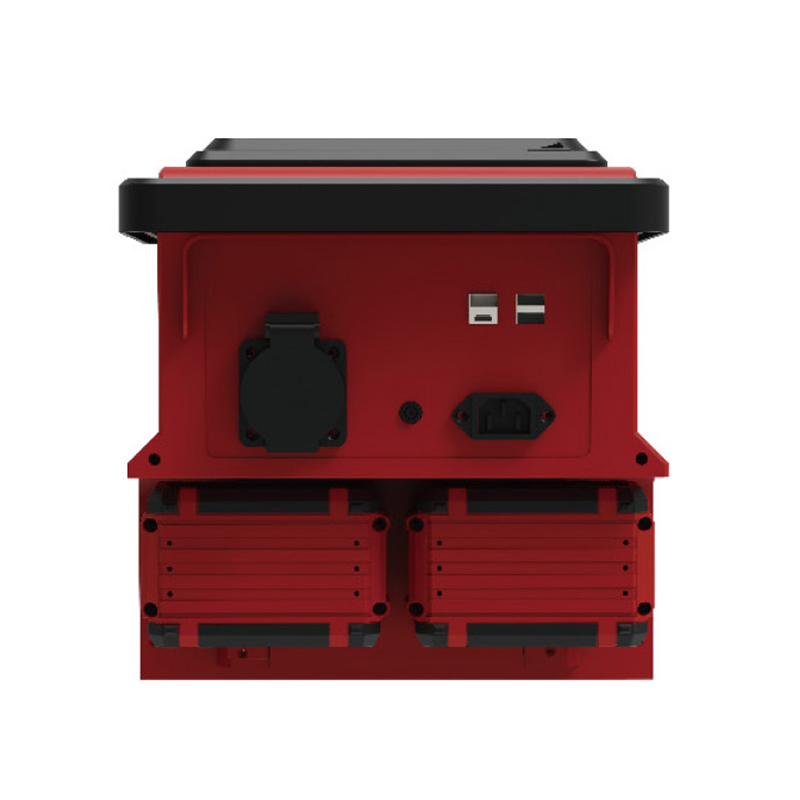

Portable energy storage ice maker
Portable energy storage ice maker,indoor emergency lighting,It is essential products for without electricity mountain,pasture,field investigation,field travel barbecue.
●High capacity and high rate lithium battery.
●"1 AC output interface,230V sine wave output,maximum peak power of 1000W,rated power of 500w.
●The LED screen shows the power level.
●1 ice maker group,each batch produces 9 pcs ice.Make ice for 8 minutes per time.
●Three USB outputs USB 1:QC 3.0 USB 2 USB 3:5v/2.4a.
●1 TYPE-C output:PD20W.
●One DC 5521Input:12V-30V/5A.
●1 pin interface AC input:220v/0.5a One PCM interface AC input:2207/0.5a.
●overvoltage,overcurrent,overtemperature.
●Battery overcharge,under voltage,overcurrent and short-circuit protection for battery.
Push-button switch
There are 3 buttons,1 power button,1 ice maker switch,and 1 choice of big ice and small ice.
One power switch is turned on by clicking,and the screen shows the power.USB,Type-C and AC outputs are turned on,and the second click is turned off.
The ice maker has four lights:the water shortage indicator:the water shortage indicator lights up red.Ice full indicator:The light is red when the ice is full.Small ice indicator light:make small ice cubes and light the small ice indicator light.Big ice indicator:make big ice and light big ice indicator.
When the power switch is on,click the ice maker switch (the big ice or small ice indicator light is on,and the ice maker is turned on,with 9 ice cubes every 8 minutes.In standby mode,press and hold the power switch of the ice maker for 3 seconds until the switch of ice full flashes,the automatic cleaning function starts and lasts for 20 minutes.If you want to stop,please press the power button of the ice maker for 1 second.
|
Input |
HE500 |
|
|
AC(product interface)inputX1 |
220V-240V/0.5A |
|
|
PV(5521 interface)inputX1 |
12V~30V/5A |
|
|
Output |
||
|
Rate power |
500W |
|
|
USB type aX3 |
USB1:QC3.0 USB2 USB3:5V/2.4A |
|
|
TYPE CX2 |
PD20W |
|
|
AC socketX1 |
230V 50HZ |
|
|
Rated Voltage |
AC220V-240V/DC18V |
|
|
Rated Power:(Make ice) |
120W |
|
|
Daily ice production |
12KGS |
|
|
Compressor |
Anuodan HV48YA |
|
|
Auto-cleaning |
YES |
|
|
Water intake mode |
manuaL |
|
|
AC power |
220V-230V |
|
|
Battery specification |
||
|
Battery type |
High-rate 18650 lithium battery,high-rate discharge 74WH,5 series 2 parallel. |
|
|
Battery capacity |
20000MAH*2PCS 74WH |
|
|
Run time |
75M |
|
|
Power line |
1.2M |
|
|
Nsulation material |
FOAMING |
|
|
Machine N.W. |
8.2KGS |
|
|
LED screen |
YES |
|
|
USE Type C |
YES |
|
|
Water tank/lce basket capacity |
1.3L |
|
|
Charge time |
3H |
|
|
ICE quantity |
9PCS |
|
|
ICE weight(PC average weight) |
0.6KGS |
|
|
Net Weight |
10.5KGS |
|
|
Gross Weight |
12KGS |
|
|
Products Size |
350*280*310mm |
|
|
Carton Size |
420*350*380mm |
|
|
Qty/20ft 20 |
501PCS |
|
|
Qty/40hq 40 |
1217PCS |
|
