●Pure Sine wave output
●Built-in Wi-Fi for mobile monitoring(Android/iOS App isavailable)
●Supports USB On-the-Go function
●Reserved communication port for BMS(USB/RS232/RS485/WiFi/Dry-contact)
●Congurable AC/PV output usage timer and prioritization
●Compatible to Utility Mains or generator input
●Selectable high power charging currentSelectable input voltage range for home appliances andpersonalcomputers
●Built-in anti-dust kit
●Lithium Iron Phosphate(LFP)cell
●Scalable Li-lon battery expansion
●Supports wall mounted and standalone installation
|

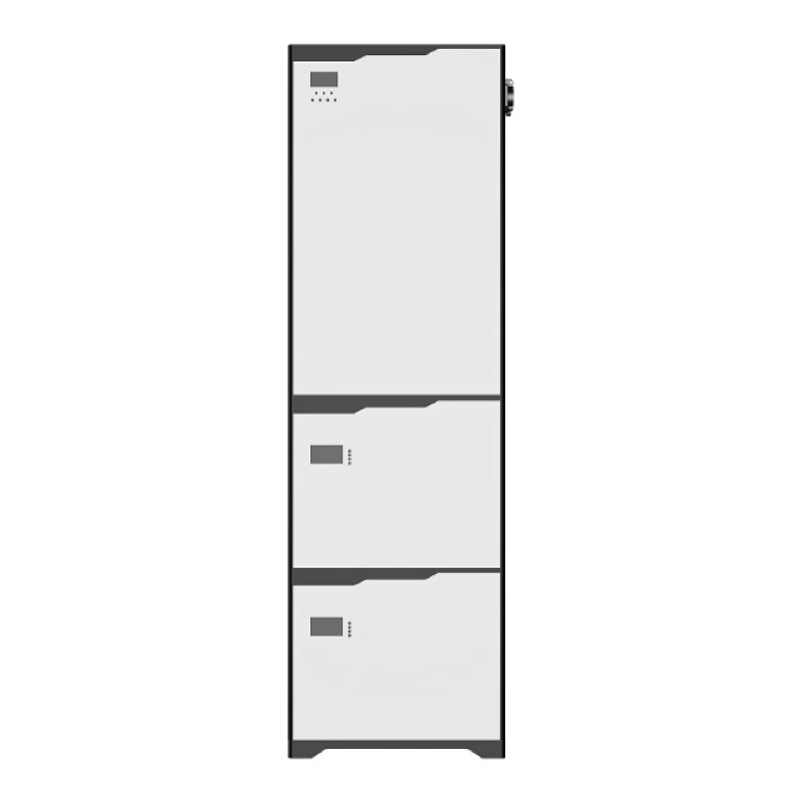

Model |
EA5000-15 |
EA5000-20 |
|
Capacity |
15.36KWh/5KW |
20.48KWh/5KW |
|
Standard discharge current |
50A |
|
|
Max. discharge current |
100A |
|
|
Working voltage range |
43.2-57.6VDC |
|
|
Standard Voltage |
51.2VDC |
|
|
Max. charging current |
50A |
|
|
Max. charging voltage |
57.6V |
|
|
Rated PV input voltage |
360VDC |
|
|
MPPT tracking voltage range |
120V-450V |
|
|
Max input voltage (VOC)at lowest temperature |
500V |
|
|
Max input power |
6000W |
|
|
Number of MPPT tracking paths |
1Path |
|
|
DC input voltage range |
42-60VDC |
|
|
Rated mains power input voltage |
220VAC/230VAC/240VAC |
|
|
Grid power input voltage range |
170VAC-280VAC(UPSmode)/120VAC-280VAC(Invertermode) |
|
|
Grid input frequency range |
45Hz—55Hz（50Hz）；55Hz—65HZ（60Hz） |
|
|
Inverter output efficiency |
94%（MAX） |
|
|
Inverter output voltage |
220VAC+2%/230VAC+2%/240VAC+2%(Inverter mode) |
|
|
Inverter output frequency |
50Hz+0.5or 60Hz+0.5(Inverter mode) |
|
|
Inverter output waveform |
Pure sine wave |
|
|
Grid output efficiency |
>99% |
|
|
Max mains charging current |
60A |
|
|
Max PV charging curren! |
100A |
|
|
Max charging current(Grid+PV) |
100A |
|
|
Optional mode |
Grid priority/PV priority/Battery priority |
|
|
Warranty |
5-10Years |
|
|
Communication |
Optional: RS485/RS232/CAN WiFi/4G/Bluetooth |
|
