Model
|
EC2400
|
Inverter Type
|
Bidirectional Inverter
|
Output
|
Ac Output X3
|
Rated Voltage
|
100-120vac/220-240Vac
|
|
Rated Power
|
2400w
|
|
Peak Power
|
3500w
|
|
Frequency
|
50/60HZ
|
Usb Output
|
12W
|
Type-c Output
|
PD/QC3.0 MAX 30W 12V/2.5A
|
Input
|
Ac Adapter
|
100-120vac/220-240Vac
|
Solar Panel
|
36V,200w max
|
Battery
|
Rated Capacity
|
2362WH
|
Rated Voltage
|
48V
|
Battery Cell Type
|
Lithium iron phosphate cylindrical type IFR 32140
|
Operating Temperature
|
0-40℃
|
Charging
|
0℃-60℃
|
Discharging
|
-30℃-60℃
|
Protection Function
|
Short circuit,overload,over temperature,over voltage,over current,under voltage etc,automatic release
|
Energy Consumption
|
<2W(Work mode),<50mw(Sleep mode)
|
Monitoring Paramenters
|
system voltage,cell voltage and temperature,Current,PCBA temperature
|
Certifications
|
System
|
CE,UN38.3,MSDS
|
Battery
|
UL1642,IEC62619,IEC62620,UN38.3
|
General
|
Water Proof
|
IP21
|
Package
|
Wooden Case+Pearl Wool
|

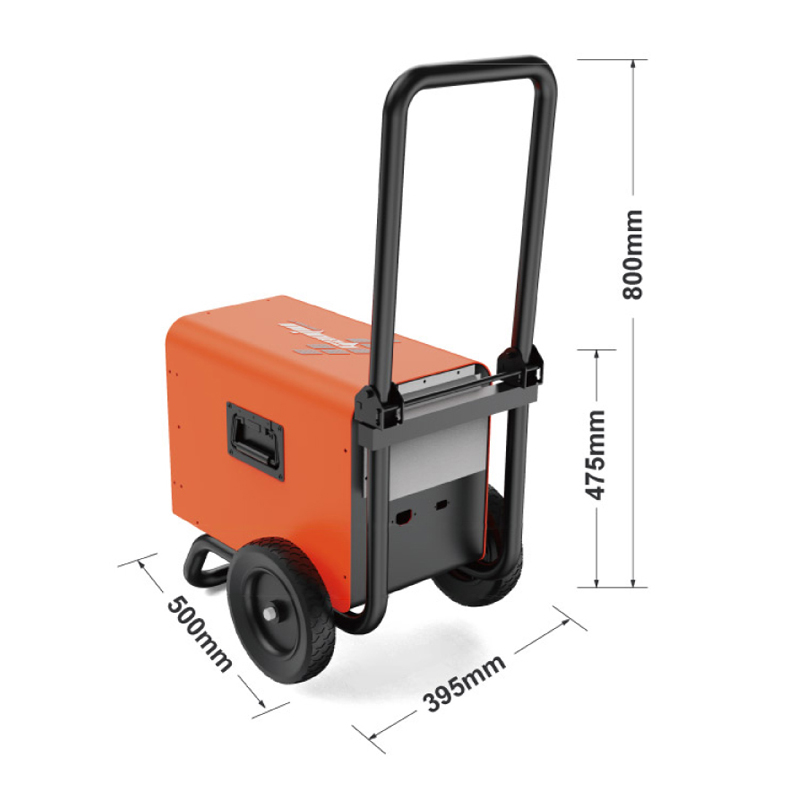

Products Foldable Size
|
465*412*455mm
|
Products Unfold Size
|
465*412*835mm
|
Package size
|
550*490*530mm
|
Net Weight
|
28kgs
|
Gross Weight
|
31kgs
|
Qty/20ft 20
|
196pcs
|
Qty/40hq 40
|
476pcs
|
Accessory
|
AC charging cable*1,Car charging cable*1,Solar charging cable *1,A foldable trolley*1
|
Optional Accessories
|
Solar panel, Car fast charge cable
|
