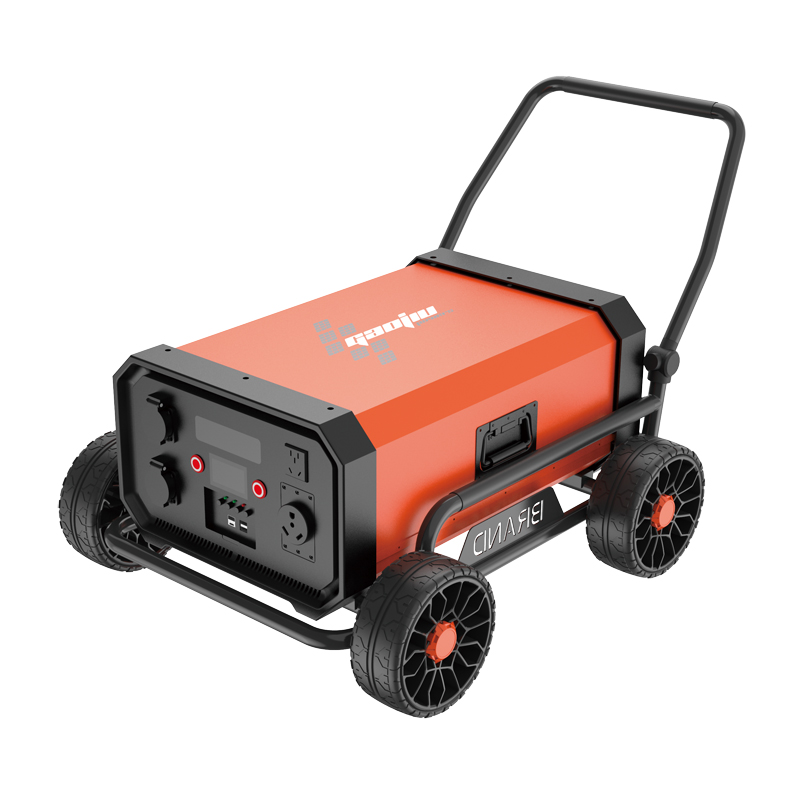

Product Model
|
ED3601
|
Inverter Type
|
Bidirectional Inverter
|
Output
|
AC OUTPUT X2
|
Rated Voltage
|
100-120vac/220-240Vac
|
|
Rated Power
|
3600w
|
|
Peak Power
|
4000w
|
|
Frequency
|
50/60HZ
|
USB Output
|
QC3.0 MAX 18W 12V/1.5A; SCP maximum output power: 22.5W maximum
|
USB Output
|
12W
|
Type-c Output
|
PD100W
|
Type-c Output
|
PD/QC3.0 MAX 30W 12V/2.5A
|
LED Light
|
7W Two Working Mode
|
DC OUTPUT
|
Continuous working current 80A, instantaneous maximum current 240A, 3-5 seconds
|
SDC5521 output
|
2×38W
|
Input
|
Ac Input
|
100-120vac/220-240Vac
|
Solar Panel
|
48V
|
Battery
|
Rated Capacity
|
3150WH
|
Rated Voltage
|
48V
|
Battery Cell Type
|
Lithium iron phosphate cylindrical type 32140
|
Operating Temperature
|
0-40℃
|
Charging
|
0℃-60℃
|
Discharging
|
-30℃-60℃
|
Protection Function
|
Short circuit, overload, over temperature, over voltage, over current, under voltage etc,automatic release
|
Energy Consumption
|
<2W(Work mode),<50mw(Sleep mode)
|
Monitoring Paramenters
|
system voltage, cell voltage and temperature,Current,PCBA temperature
|
Certifications
|
System
|
CE, UN38.3
|
Battery
|
UL1642，IEC62619，IEC62133，UN38.3
|
General
|
Water Proof
|
IP21
|
Package
|
Carton+Pearl wool +foldable cart
|
Produets size
|
720*438*477mm
|
Carton size
|
815×535×585mm
|
Foam box size
|
785×503×552mm
|
Net weight
|
29kgs
|
Gross weight
|
34kgs
|
Qty/20ft20
|
110pcs
|
Qty/40FT 40
|
220pcs
|
Qty/40HQ 40
|
267pcs
|
Accessory
|
AC charging cable*1,Car charging cable*1,Solar charging cable *1, DC5521-5525patch cord *1
|
Optional accessories
|
Optional accessories Solar panel,Car fast charge cable
|
