Model
|
EC5600
|
Inverter Type
|
Bidirectional Inverter
|
Output
|
AC Output X3
|
Rated Voltage
|
100-120VAC/220-240VAC
|
|
Rated Power
|
5600W
|
|
Peak Power
|
11200W
|
|
Frequency
|
50/60HZ
|
USB Output
|
USB1:QC3.0 18W,USB2 USB3:5V/3.4A
|
Type-C Output
|
PD3.0 20W
|
Input
|
AC Input
|
100-120vac/220-240Vac 63A
|
Solar Panel
|
120V-450V 6000W
|
Battery
|
Rated Capacity
|
5427WH
|
Rated Voltage
|
51.2V
|
Battery Cell Type
|
3.2V 104AH x16
|
Operating Temperature
|
0-40℃
|
Battery Cycle Life
|
3000times
|
Protection Function
|
Short circuit, overload, over temperature, over voltage, over current, under voltage etc,automatic release
|
Monitoring Paramenters
|
system voltage,cell voltage and temperature,Current,PCBA temperature
|
Certifications
|
CE,ROHS,UN38.3,MSDS,UL1642,IEC62619,IEC62133
|
General
|
Package
|
Wooden Case+Pearl Wool
|

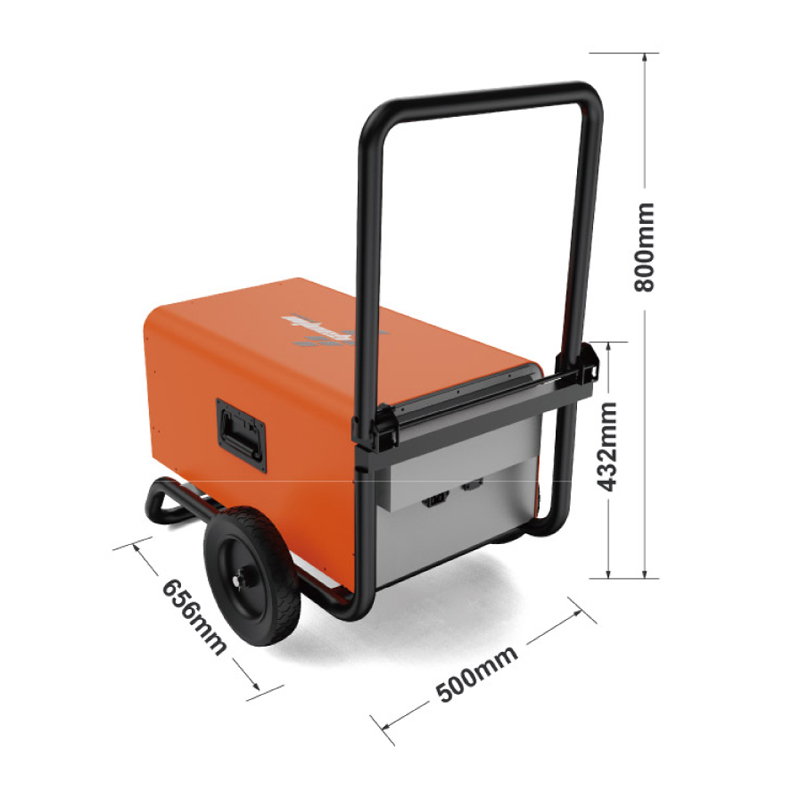

Products Size
|
FOLD 656*500*432mm
|
Package Size
|
FOLD 726*570*502mm
|
Net Weight
|
63kgs
|
Gross Weight
|
68kgs
|
Trolley Weight
|
11kgs
|
Qty/20ft
|
134pcs
|
Qty/40hq
|
325pcs
|
Accessory
|
AC charger cable *1,Instruction manual*1,Foldable trolley*1
|
Optional Accessories
|
Solar panel*1,Car charging cable*1,Solar charging cable *1,DC5521patch cord *1
|
